Introduction
The document describes a high efficiency LED driver designed to drive an LED driver at a current of 300&600 mA from an input voltage range of 24 VDC to80 VDC, output support 3~8 series 1/3W LED.
The XL8004 also provides a sophisticated range of protection features including auto-restart for control loop open/short faults and output short-circuit conditions. Accurate hysteretic thermal shutdown ensures safe average PCB temperatures under all conditions. Design with very low parts count.
This document contains the converter specification, schematic, PCB diagram, bill of materials.

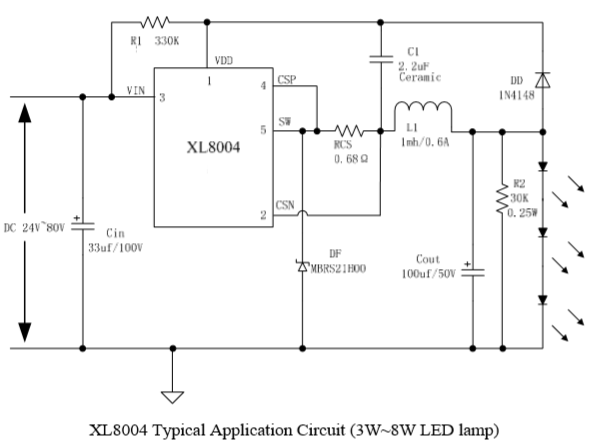

Schematic

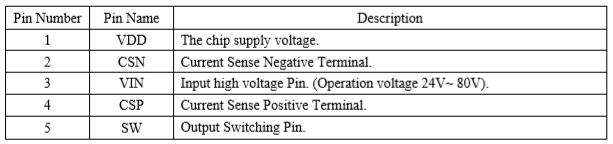

Pin Description

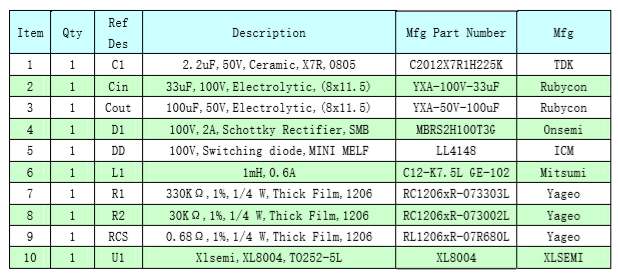

Bill of Materials

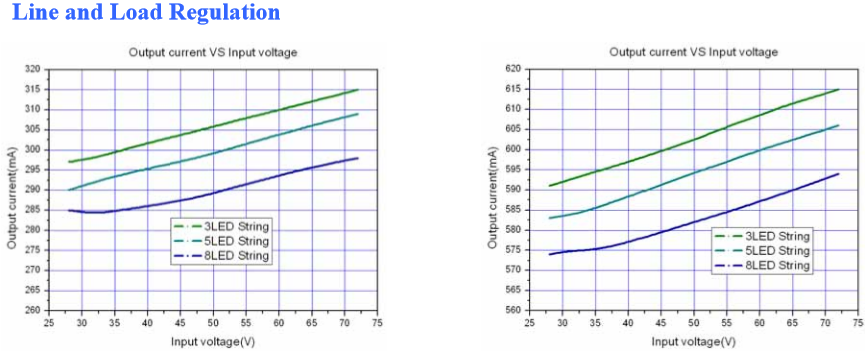

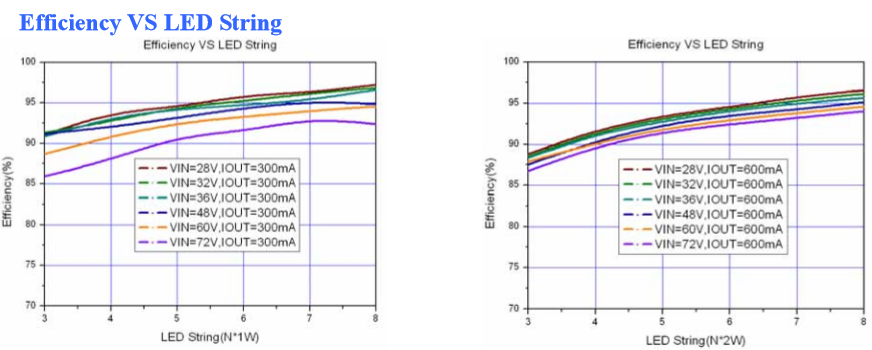

Performance Data
Populated Circuit Board Phtograph

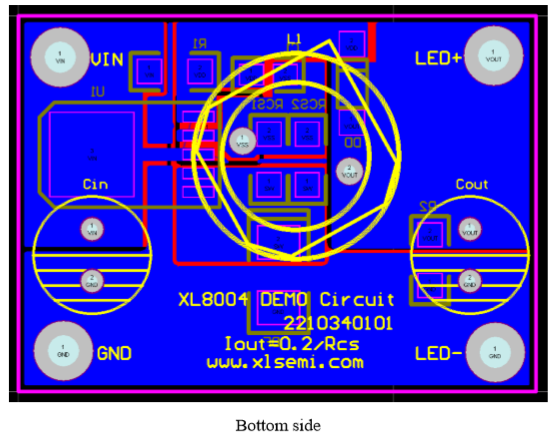

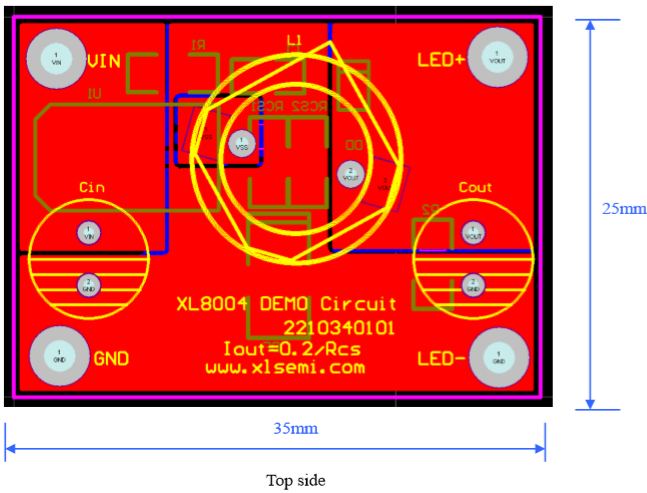

PCBLayout

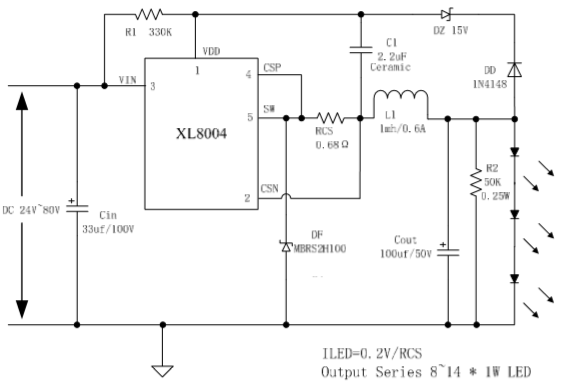

Typical application circuit for output Series8~14*1W LED
